Table 1 shows the Quick Specs.
|
Product Code |
Huawei CH140 V3 Compute Node for E9000 |
|
Form Factor |
Two 2-socket, twin compute nodes in a half-width slot |
|
Number of Processors |
1 or 2 in each 2-socket compute node |
|
Processor Models |
Intel® Xeon® E5-2600 v3/v4 series |
|
Number of DIMMs |
8 DDR4 DIMMs for each 2-socket compute node |
|
Number of Hard Disks |
One 2.5-inch SSD/SATA for each 2-socket compute node |
|
RAID Support |
N/A |
|
PCIe Expansion |
2 twin nodes share 2 Mezz modules |
|
OS Support |
Microsoft Windows Server 2008/2012 Red Hat Enterprise Linux SUSE Linux Enterprise Server Oracle Linux CentOS Citrix XenServer VMware |
|
Operating Temperature |
5°C to 35°C |
|
Dimensions |
Height: 60.46 mm (2.38 in.) Width: 210 mm (8.27 in.) Depth: 537.2 mm (21.15 in.) |

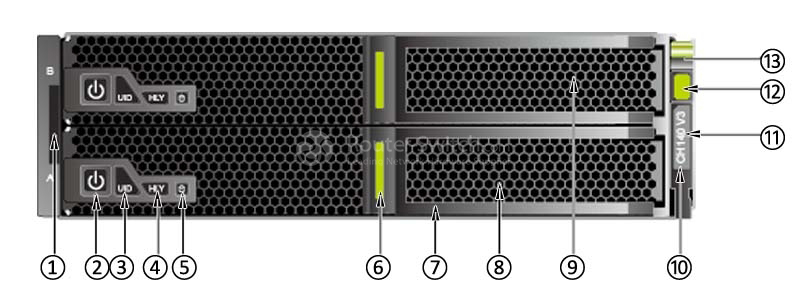

Figure 2 shows the front panel of Huawei CH140 V3 Compute Node for E9000.
Note:
|
① |
Customization label (with an ESN label) |
② |
Power button/indicator |
|
③ |
UID button/indicator |
④ |
Health indicator |
|
⑤ |
Hard disk indicator |
⑥ |
Spring |
|
⑦ |
Ejector lever (child compute node) |
⑧ |
Child compute node A |
|
⑨ |
Child compute node B |
⑩ |
Product model |
|
⑪ |
Ejector lever |
⑫ |
Ejector lever extension bar |
|
⑬ |
Release button |
- |
- |
Table 3 shows the comparison of Huawei CH140 V3 Compute Node for E9000 and Huawei CH121 V3 Compute Node.
|
Product Code |
Huawei CH140 V3 Compute Node for E9000 |
Huawei CH121 V3 Compute Node |
|
Form Factor |
Two 2-socket, twin compute nodes in a half-width slot |
Half-width 2-socket compute node |
|
Number of Processors |
1 or 2 in each 2-socket compute node |
1 or 2 |
|
Processor Models |
Intel® Xeon® E5-2600 v3/v4 series |
Intel® Xeon® E5-2600 v3/v4 series |
|
Number of DIMMs |
8 DDR4 DIMMs for each 2-socket compute node |
24 DDR4 DIMMs, providing a maximum memory capacity of 1.5 TB |
|
Number of Hard Disks |
One 2.5-inch SSD/SATA for each 2-socket compute node |
2 x 2.5-inch SSDs, SAS HDDs, or SATA HDDs, supporting 2 x NVMe SSDs |
|
RAID Support |
N/A |
RAID 0 and 1 |
|
PCIe Expansion |
2 twin nodes share 2 Mezz modules |
2 PCIe x 16 Mezz modules 1 standard PCIe x 16 full-height, half-length card |
Huawei CH140 V3 Compute Node for E9000 Specifications |
|
|
Form Factor |
Two 2-socket, twin compute nodes in a half-width slot |
|
Number of Processors |
1 or 2 in each 2-socket compute node |
|
Processor Models |
Intel® Xeon® E5-2600 v3/v4 series |
|
Number of DIMMs |
8 DDR4 DIMMs for each 2-socket compute node |
|
Number of Hard Disks |
One 2.5-inch SSD/SATA for each 2-socket compute node |
|
RAID Support |
N/A |
|
PCIe Expansion |
2 twin nodes share 2 Mezz modules |
|
OS Support |
Microsoft Windows Server 2008/2012 Red Hat Enterprise Linux SUSE Linux Enterprise Server Oracle Linux CentOS Citrix XenServer VMware |
|
Operating Temperature |
5°C to 35°C |
|
Dimensions |
Height: 60.46 mm (2.38 in.) Width: 210 mm (8.27 in.) Depth: 537.2 mm (21.15 in.) |
