DL580 Gen10 Server offers greater processing power, up to 6 TB of faster memory, IO of up to sixteen PCIe 3.0 slots, plus the intelligence and simplicity of automated management with HPE OneView and HPE iLO 5. The 869854-B21 stands for HPE ProLiant DL580 Gen10 8SFF Configure-to-order Server.
Table 1 shows the quick spec.
|
Product Number |
869854-B21 |
|
Product Description |
HPE ProLiant DL580 Gen10 8SFF Configure-to-order Server |
|
Chipset |
Intel® C621 Chipset |
|
Processor |
4U Server Chassis with 2 processor slots available; 4 processor configuration would require optional HPE ProLiant HPE DL5x0 Gen10 CPU Mezzanine Board Kit (872222-B21) |
|
DIMM Slots |
24 DIMM slots for RDIMM, LRDIMM DDR4 Memory; 48 DIMM configuration would require optional HPEProLiant HPE DL5x0 Gen10 CPU Mezzanine Board Kit (872222-B21) and 4 processors |
|
Network Controller |
None. FlexibleLOM slot (various options can be chosen for networking; NIC cards also available via expansion slots) |
|
Storage Controller |
HPE Smart Array S100i |
|
PCIe |
None. Must order a primary riser (16 PCIe 3.0 slots are available if all processors are chosen and the primary, secondary and tertiary Riser Kits have been installed) |
|
Drive Cage |
8 SFF in Box 1, no drives |
|
Fans |
12 hot plug fans, (n+1) redundant |
|
Management |
HPE iLO Standard with Intelligent Provisioning and (Standard); HPE OneView Standard (requires download) and HPE iLO Advanced (require additional licenses), HPE iLO Advanced Premium Security Edition (require additional licenses), HPE OneView Advanced (require additional licenses) |
|
microSD Slots |
1 microSD card slot (internal) |
Figure 1 shows the front view of DL580 Gen10 servers.
Note:
|
① |
Quick removal access panel |
|
② |
Box 1 (8 SFF, 6 SFF+2 NVMe or 8 NVMe (supports only 4 NVMe drives) SSD optional) |
|
③ |
Box 2 (8 SFF, 6 SFF+2 NVMe or 8 NVMe PCIe SSD optional) |
|
④ |
Box 3 (8 SFF, 6 SFF+2 NVMe or 8 NVMe PCIe SSD optional) |
|
⑤ |
Front USB 3.0 port |
|
⑥ |
Power On/Standby button and system power LED button |
|
⑦ |
Health LED |
|
⑧ |
NIC status |
|
⑨ |
UID button |
|
⑩ |
iLO Front Service Port |
|
⑪ |
Front USB 3.0 port |
|
⑫ |
Serial label pull tag |
|
⑬ |
Box 6 (8 SFF) |
|
⑭ |
Box 5 (8 SFF) |
|
⑮ |
Box 4 (8 SFF or Universal Media bay) |
|
⑯ |
Optional USB 2.0 (via Universal Media Bay) |
|
⑰ |
Optional 2 SFF HDD, requires optional Universal Media bay |
|
⑱ |
Optional front display port (via Universal Media Bay) |
|
⑲ |
Optional USB 2.0 (via Universal Media Bay) |

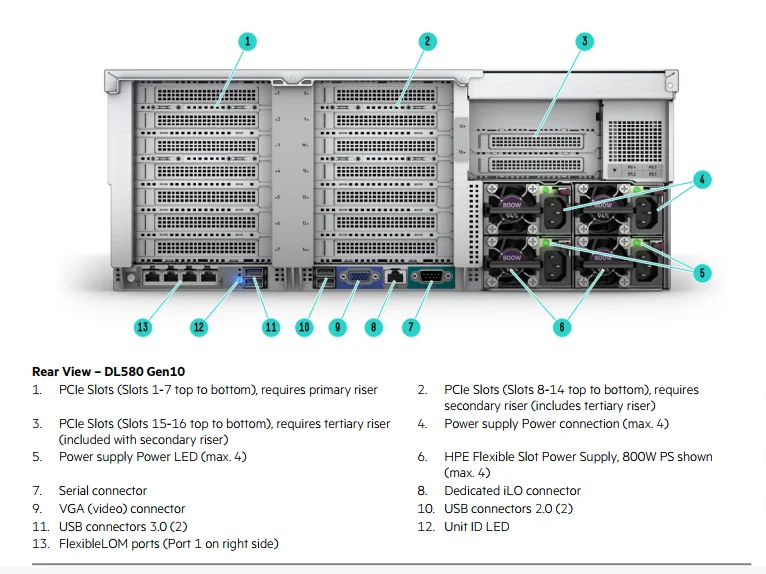

Figure 2 shows the back view of DL580 Gen10 servers.
Note:
|
① |
PCIe Slots (Slots 1-7 top to bottom), requires primary riser |
|
② |
PCIe Slots (Slots 8-14 top to bottom), requires secondary riser (includes tertiary riser) |
|
③ |
PCIe Slots (Slots 15-16 top to bottom), requires tertiary riser (included with secondary riser) |
|
④ |
Power supply Power LED (max. 4) |
|
⑤ |
Power supply Power connection (max. 4) |
|
⑥ |
HPE Flexible Slot Power Supply, 800W PS shown (max. 4) |
|
⑦ |
Serial connector |
|
⑧ |
Dedicated iLO connector |
|
⑨ |
VGA (video) connector |
|
⑩ |
USB connectors 2.0 (2) |
|
⑪ |
USB connectors 3.0 (2) |
|
⑫ |
Unit ID LED |
|
⑬ |
FlexibleLOM ports (Port 1 on right side) |
Table 2 shows the recommended elements for the HPE 869854-B21.
|
Product number |
Description |
|
872475-B21 |
HPE 300GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
|
872477-B21 |
HPE 600GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
|
870753-B21 |
HPE 300GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
|
872479-B21 |
HPE 1.2TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
|
868818-B21 |
HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
|
875503-B21 |
HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
Table 3 shows the comparison between HPE 869854-B21 and HPE 841730-B21.
|
Product Number |
869854-B21 |
841730-B21 |
|
Product Description |
HPE ProLiant DL580 Gen10 8SFF Configure-to-order Server |
HPE DL560 Gen10 8SFF CTO Server |
|
Processor |
4U Server Chassis with 2 processor slots available; 4 processor configuration would require optional HPE ProLiant HPE DL5x0 Gen10 CPU Mezzanine Board Kit (872222-B21) |
2U Server Chassis with 2 processor slots available; 4 processor configuration would require optional HPE ProLiant HPE DL5x0 Gen10 CPU Mezzanine Board Kit (872222-B21) |
|
DIMM Slots |
24 DIMM slots for RDIMM, LRDIMM DDR4 Memory; 48 DIMM configuration would require optional HPEProLiant HPE DL5x0 Gen10 CPU Mezzanine Board Kit (872222-B21) and 4 processors |
24 DIMM slots for RDIMM, LRDIMM DDR4 Memory; 48 DIMM configuration would require optional HPE ProLiant HPE DL5x0 Gen10 CPU Mezzanine Board Kit (872222-B21) and 4 processors |
|
Storage Controller |
HPE Smart Array S100i |
HPE Smart Array S100i |
|
PCIe |
None. Must order a primary riser (16 PCIe 3.0 slots are available if all processors are chosen and the primary, secondary and tertiary Riser Kits have been installed) |
3 PCIe 3.0 slots (8 PCIe 3.0 slots are available if second processor is chosen and a Secondary and Tertiary Riser Kits has been installed) |
|
Drive Cage |
8 SFF in Box 1, no drives |
8 SFF, no drives |
