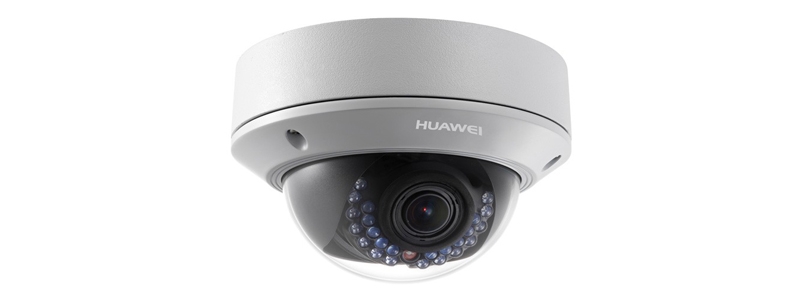

Figure 1 shows the appearance of IPC6311-IR(12mm)
Table 1 shows the Quick Specs.
|
Model Item |
IPC6311-IR(12mm) |
|
Image sensor |
1/3" 1.3 Megapixel Progressive Scan CMOS |
|
Max. Image Resolution |
1280(H)× 960(V) |
|
Min. Illumination Day &Night Mode |
0.01 Lux @(F1.2,AGC ON), 0 Lux with IR Auto(ICR)/ Color / B/W /Timing/ Alarm Trigger |
|
IR Distance |
20~30m |
|
Electronic shutter speed Gain control |
1/3 ~ 1/100,000s Supported |
|
White balance Wide Dynamic Range |
MWB/AWB1/Locked WB/Fluorescent Lamp/incandescent Lamp/Warm Light Lamp/Natural Light Supported |
|
Backlight compensation |
Supported |
|
Lens mount |
ø14 |
|
Focal length Max. aperture ratio |
4mm,12mm fixed lens optional F2.0 |
|
Horizontal Angle of View |
IPC6311-IR(4mm): 73.1°, IPC6311-IR(12mm): 22° |
|
Angle Adjustment range |
Pan: 0°~ 355°, Tilt: 0°~ 75°, Rotation: 0°~ 355° |
|
Image Compression |
H.264 Main Profile,MJPEG |
|
Video resolution and frame rate Video Bitrate |
50Hz: 25fps (1280 × 960), 25fps (1280 × 720) |
|
Multiple streams MTU Configuration |
Dual streams (Main Stream/Sub Stream) Default: 1500; configuration range: 1280 ~ 1500 |
|
IP Address Filtering |
Supported |
|
Communication interface Alarm interface |
1 RJ45 10M/100M adaptable Ethernet interface,1 RS-485 interface(PELCO-P/D) 1 alarm input /1alarm output |
|
Audio Communication |
Voice intercom(Pick-up is needed), voice broadcasting, channel associated voice |
|
Audio interface Motion detection |
1-channel audio input/1-channel audio Output Supported |
|
Privacy masking Corridor Format |
Supported Support aspect ratio 9:16 |
|
PU Access Protocol |
ONVIF 2.2 |
|
Network protocol Bitrate Type |
ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour Constant bit rate (CBR), Variable Bit Rate (VBR) |
|
ROI encoding |
Supported |
|
Storage interface Digital watermark |
Micro SD/SDHC /SDXC card (64G) Supported |
|
Security Measures Front-end Recording |
User name and password authentication, and support 802.1x Support SD card schedule recording, alarm recording, and local playback |
|
Alarm linkage |
Alarm Trigger: motion detection, tampering alarm, switch Input. Alarm action: switch output, SD card recording, notification on client, sending E-mail |
|
Fast configuration Max. Video Stream Accessing |
Support indoor/outdoor scene switch Support max. 6 channels video streams accessing |
|
Web Browser |
IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +, support multi-language; Windows XP, Windows7, Windows8 |
|
Power supply Power consumption Operating temperature / humidity |
DC12V±10% / PoE(802.3af) 5.5W MAX Operating temperature: -30ºC ~ 60ºC Operating humidity: 5% ~ 90% (Non-condensing) |
|
Weather proof rating |
IP66 |
|
Vandal–proof Level Net weight |
IEC60068-2-75 Testing,Eh,50J;EN50102,IK10 800g |
|
Physical Product Appearances |
ø139.9×99.9mm |
IPC6311-IR(12mm) Specification |
|
|
Image sensor |
1/3" 1.3 Megapixel Progressive Scan CMOS |
|
Max. Image Resolution |
1280(H)× 960(V) |
|
Min. Illumination Day &Night Mode |
0.01 Lux @(F1.2,AGC ON), 0 Lux with IR Auto(ICR)/ Color / B/W /Timing/ Alarm Trigger |
|
IR Distance |
20~30m |
|
Electronic shutter speed Gain control |
1/3 ~ 1/100,000s Supported |
|
White balance Wide Dynamic Range |
MWB/AWB1/Locked WB/Fluorescent Lamp/incandescent Lamp/Warm Light Lamp/Natural Light Supported |
|
Backlight compensation |
Supported |
|
Lens mount |
ø14 |
|
Focal length Max. aperture ratio |
4mm,12mm fixed lens optional F2.0 |
|
Horizontal Angle of View |
IPC6311-IR(4mm): 73.1°, IPC6311-IR(12mm): 22° |
|
Angle Adjustment range |
Pan: 0°~ 355°, Tilt: 0°~ 75°, Rotation: 0°~ 355° |
|
Image Compression |
H.264 Main Profile,MJPEG |
|
Video resolution and frame rate Video Bitrate |
50Hz: 25fps (1280 × 960), 25fps (1280 × 720) |
|
Multiple streams MTU Configuration |
Dual streams (Main Stream/Sub Stream) Default: 1500; configuration range: 1280 ~ 1500 |
|
IP Address Filtering |
Supported |
|
Communication interface Alarm interface |
1 RJ45 10M/100M adaptable Ethernet interface,1 RS-485 interface(PELCO-P/D) 1 alarm input /1alarm output |
|
Audio Communication |
Voice intercom(Pick-up is needed), voice broadcasting, channel associated voice |
|
Audio interface Motion detection |
1-channel audio input/1-channel audio Output Supported |
|
Privacy masking Corridor Format |
Supported Support aspect ratio 9:16 |
|
PU Access Protocol |
ONVIF 2.2 |
|
Network protocol Bitrate Type |
ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour Constant bit rate (CBR), Variable Bit Rate (VBR) |
|
ROI encoding |
Supported |
|
Storage interface Digital watermark |
Micro SD/SDHC /SDXC card (64G) Supported |
|
Security Measures Front-end Recording |
User name and password authentication, and support 802.1x Support SD card schedule recording, alarm recording, and local playback |
|
Alarm linkage |
Alarm Trigger: motion detection, tampering alarm, switch Input. Alarm action: switch output, SD card recording, notification on client, sending E-mail |
|
Fast configuration Max. Video Stream Accessing |
Support indoor/outdoor scene switch Support max. 6 channels video streams accessing |
|
Web Browser |
IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +, support multi-language; Windows XP, Windows7, Windows8 |
|
Power supply Power consumption Operating temperature / humidity |
DC12V±10% / PoE(802.3af) 5.5W MAX Operating temperature: -30ºC ~ 60ºC Operating humidity: 5% ~ 90% (Non-condensing) |
|
Weather proof rating |
IP66 |
|
Vandal–proof Level Net weight |
IEC60068-2-75 Testing,Eh,50J;EN50102,IK10 800g |
|
Physical Product Appearances |
ø139.9×99.9mm |
