The EP1Z02IPHO is a Huawei eSpace 7950 IP Phone. Huawei eSpace 7900 series IP phones are a new-generation of IP phones with incredible thin design and superb performance. The eSpace 7950 is equipped with a 5-inch, high-resolution, true color screen and supports six SIP accounts. It provides a rich array of functions and delivers excellent operation experience. It also offers a user-friendly MMI on a large, true color Liquid Crystal Display (LCD) screen, supports a broad range of peripherals, and delivers high-quality call services, making it an icon of the new generation of business IP phones.
Figure 1 shows the appearance of EP1Z02IPHO.
Table 1 shows the Quick Specs.
|
Product Code |
EP1Z02IPHO (eSpace 7950 IP Phone) |
|
Display |
5-inch color screen, 800 x 480 pixels, 16 million colors |
|
Network Ports |
N/A |
|
Headset Port |
RJ-9/USB |
|
Embedded Bluetooth |
Supported |
|
Six-party Local Conference |
Supported |
|
Power Consumption |
About 6.49W |
|
Dimensions |
217 mm x 208 mm x 124 mm |
|
Weight |
About 0.9 kg |
Figure 2 shows the front view of EP1Z02IPHO.
Table 2 shows the buttons and Indicator of the eSpace 7950 IP Phone.
|
No. |
Name |
Description |
No. |
Name |
Description |
|
① |
MWI |
Message Waiting Indicator |
⑧ |
Mute Button |
Turns mute on and off. Mute disables the audio input for your audio devices, such as a headset, speakerphone, or microphone. With mute enabled, you can hear other parties on the call but they cannot hear you. |
|
② |
Line Buttons |
Displays the account status. An unused line button can be used as a programmable button. |
⑨ |
Headset Button |
When a call comes in, you can press the button to answer the call in headset mode and press the button again to end the call. |
|
③ |
Softkey |
N/A |
⑩ |
Call History Button |
Displays the History screen. |
|
④ |
Navigation Buttons |
Provides four arrow buttons: Up arrow, Down arrow, Left arrow, and Right arrow, and one OK button. |
⑪ |
Message Button |
Displays the History screen. |
|
⑤ |
Forward Button |
Provides four arrow buttons: Up arrow, Down arrow, Left arrow, and Right arrow, and one OK button. |
⑫ |
Keypad |
Allows you to enter digits, lowercase or uppercase letters, and special characters. |
|
⑥ |
Volume Button |
When the phone is idle or ringing, you can: l Press + to turn up the volume of the ringtone. l Press - to turn down the volume of the ringtone. When the phone is offhook, dialing, or in an active call, you can: l Press + to turn up the volume of the handset, headset, and speakerphone. l Press - to turn down the volume of the handset, headset, and speakerphone. |
⑬ |
Contacts Button |
Displays the Contacts screen |
|
⑦ |
Speaker Button |
When a call comes in, you can press the button to answer the call in speaker mode and press the button again to end the call. |
⑭ |
Home Button |
Displays the home screen. |

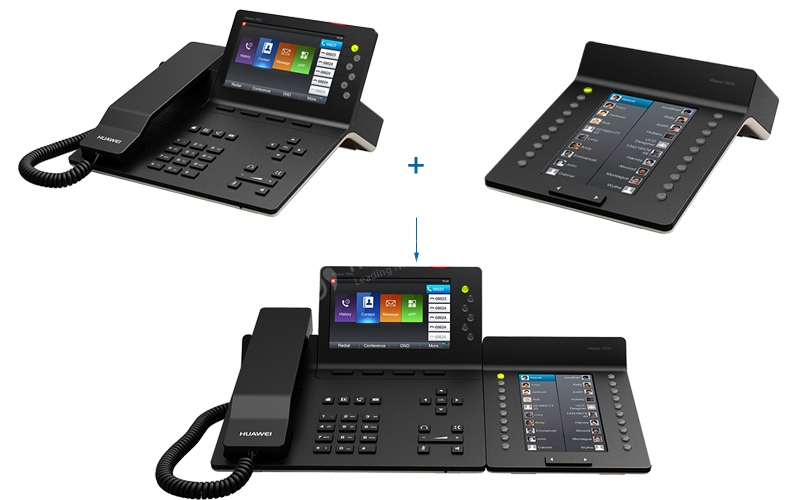

Figure 3 shows that this eSpace 7950 supports eSpace 7903X Expansion Module (EP1Z01ETIM). This module needs to be ordered separately.
Table 3 shows the comparison of EP1Z02IPHO and EP3Z02CDD.
|
Model |
EP1Z02IPHO |
EP3Z02CDD |
|
Type |
Huawei eSpace 7950 IP Phone |
Huawei eSpace 8950 IP Phone |
|
Display |
True-color 5-inch screen with 800 x 480 pixels (high resolution) and 16 million colors |
8-inch, 1,280 x 800 resolution, IPS multiple-touch |
|
HD Camera Option |
No |
Yes |
|
Net Dimension(D x W x H mm) |
217 x 208 x 124 |
259 x 236 x 71 |
EP1Z02IPHO (eSpace 7950 IP Phone) Specification |
|
|
Display |
5-inch color screen, 800 x 480 pixels, 16 million colors |
|
Network Ports |
N/A |
|
Headset Port |
RJ-9/USB |
|
Embedded Bluetooth |
Supported |
|
Six-party Local Conference |
Supported |
|
Power Consumption |
About 6.49W |
|
Dimensions |
217 mm x 208 mm x 124 mm |
|
Weight |
About 0.9 kg |
