Table 1 shows the Quick Specs.
|
Product Code |

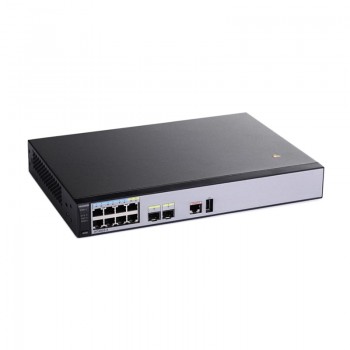

Huawei Router - AR0M0024DC00 |
|
Service and Router Unit |
SRU 40 |
|
Service interfaces (standard configuration) |
WAN interfaces: Configured with SRU40/SRU60/SRU80/SRU100: 1 GE electrical interface and 2 GE combo interfaces |
|
Expansion Card Slots |
4 SIC slots, 2 WSIC slots, and 2 XSIC slots |
|
Memory |
Configured with SRU40/SRU60/SRU80/SRU100: 2 GB |
|
Power module type |
Built-in DC power module |
|
Weight |
2 RU |
|
Dimensions (W x D x H) |
442.0 mm x 470.0 mm x 88.1 mm |
AR0M0024DC00 Specification |
|
|
WAN Speed with Services*** |
1 Gbit/s (With SRU40) 2 Gbit/s (With SRU80) 1 Gbit/s (With SRU100E) 4.5 Gbit/s (With SRU200) |
|
Firewall Performance (large packets) |
5.5 Gbit/s (With SRU40) 9.5 Gbit/s (With SRU80) 10 Gbit/s (With SRU100E) 15 Gbit/s (With SRU200) |
|
Number of recommended users |
1,000 |
|
Fixed WAN Ports |
SRU40: 3 x GE (2 x Combo) SRU80: 3 x GE (2 x Combo) SRU100E: 4 x GE Combo+ 2 x GE SFP SRU200: 4 x GE Combo+ 2 x 10 GE SFP+ |
|
SIC Slots |
4 |
|
WSIC Slots (default/max**) |
2/4 |
|
XSIC Slots (default/max**) |
2/4 |
|
EXSIC Slot (shared with XSIC slots) |
1 |
|
DSP Slots |
0/3 |
|
USB 2.0 Ports |
1/2 |
|
Mini-USB Ports |
1 |
|
Console Port |
1 |
|
Memory |
2 GB/4 GB |
|
Flash |
2 GB/8 GB |
|
Maximum Power |
350W (Single Power Module) 700W (Dual Power Module) |
|
Redundant Power Supply |
Internal: AC, DC |
|
AC Power |
100V to 240V |
|
Frequency |
50 Hz/60 Hz |
|
DC Power |
-48V to -60V |
|
Dimensions (height x width x depth) |
88.1 mm x 442 mm x 470 mm |
|
Weight |
8.95 kg (without power module and interface card) |
|
Ambient Temperature |
0°C to 45°C |
|
Relative Humidity |
5% to 95% (non-condensing) |
